Pragmatic Head Only

Download a PDF or see the assembly instructions below.

Frame assembly

Instructions for Twin Twin XL Full Queen King and Cal King sizes.

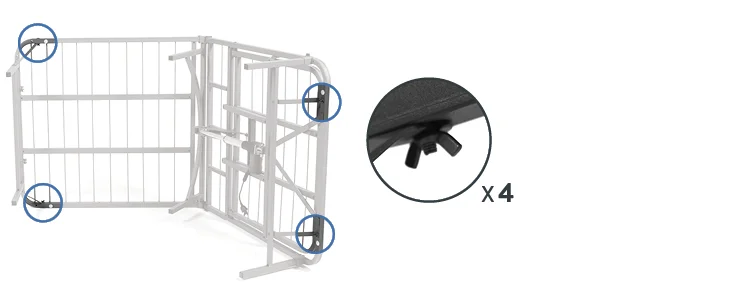

1 Rest the frame on its side, then open at an angle to keep it upright.



2 Extend the legs and secure each support arm with a wingnut. Complete the motor assembly and wiring before righting the frame.

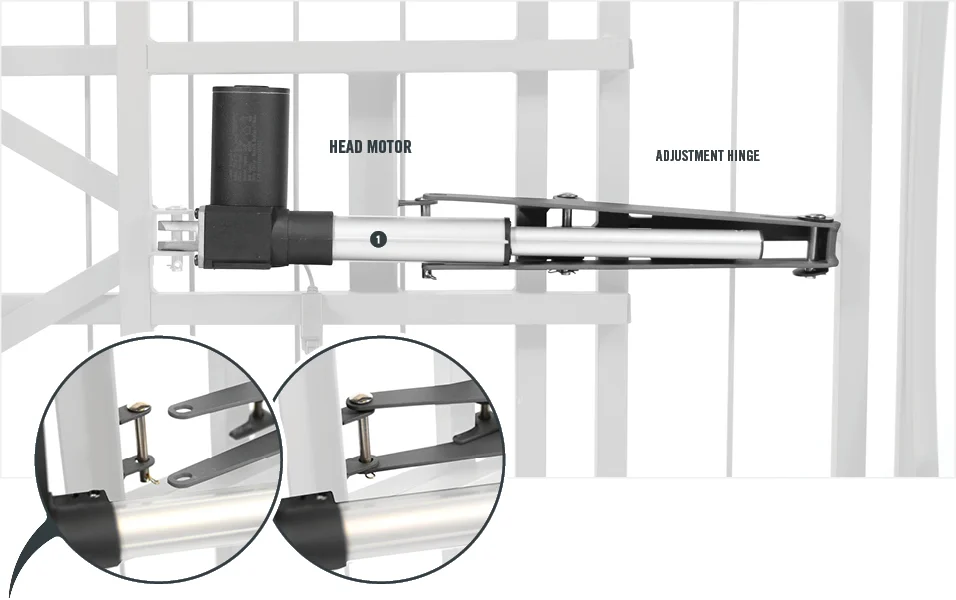

Head motor assembly

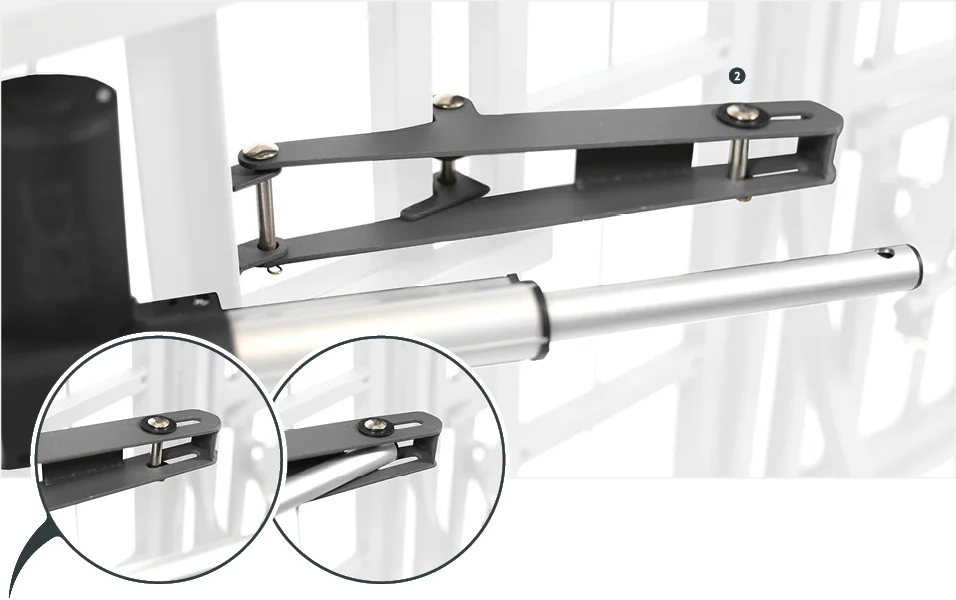

1 Swing the head motor away from the frame to access the adjustment hinge. Remove the long bolt and cotter pin, align the adjustment hinge with the frame, then resecure it.


2 Remove the short bolt, washers, and cotter pin from the adjustment hinge. Align the head motor shaft within the adjustment hinge, then resecure it with the short bolt, washers, and cotter pin.

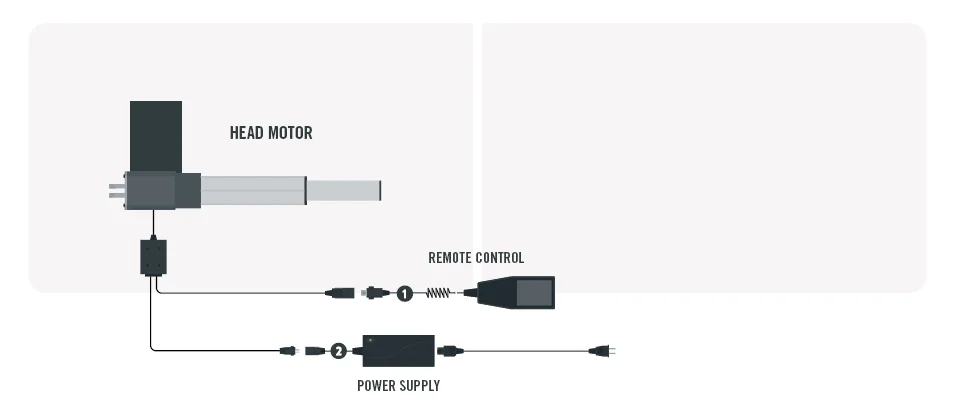

Motor wiring

Instructions for Twin Twin XL King and Cal King sizes.

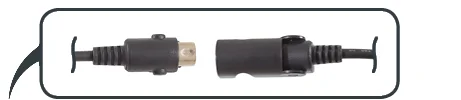

1 Connect the remote control to the head motor.

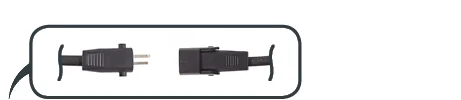

2 Connect the power supply to the head motor.

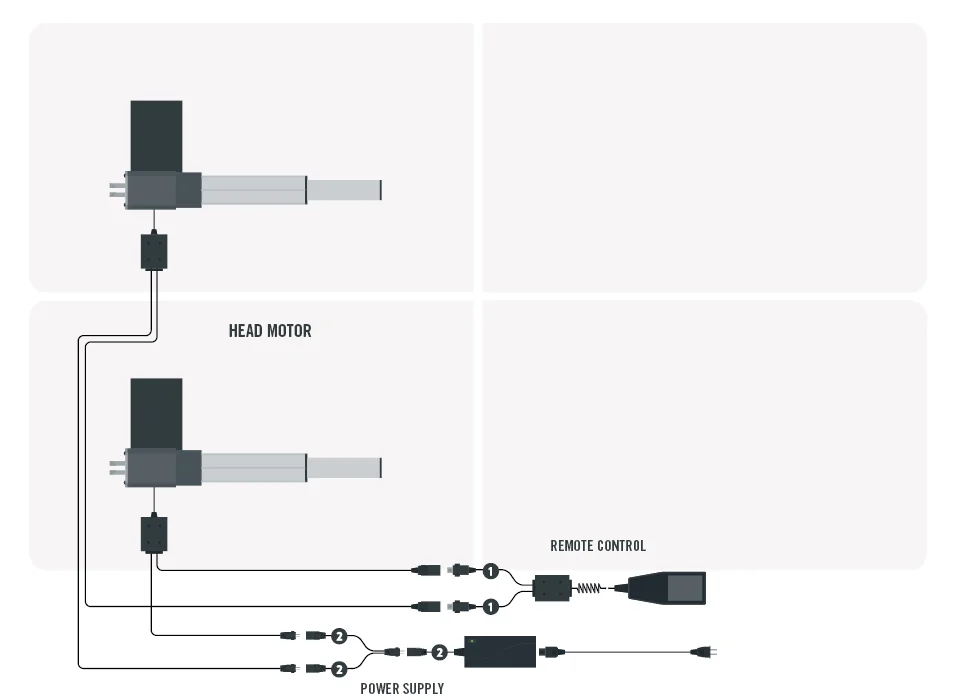

Motor wiring

Instructions for Full and Queen sizes.



1 Connect the remote control to the head motor.



2 Connect the power supply to the head motor.

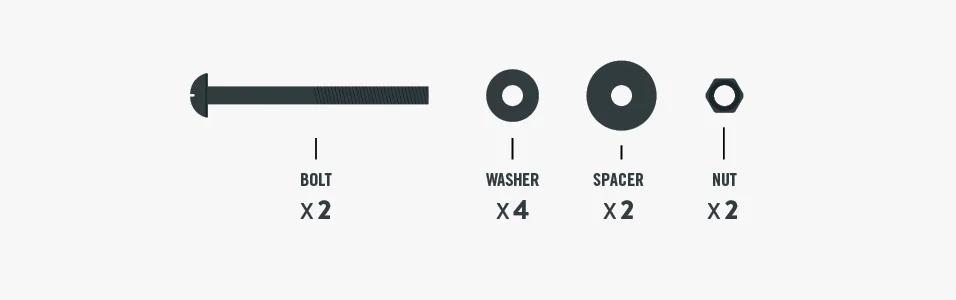

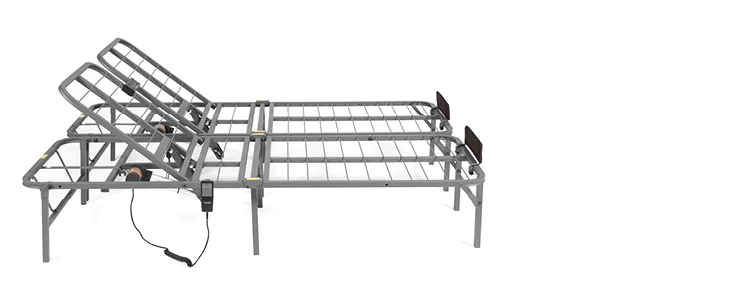

Connecting bolt

Join two frames together using the connecting bolt for Full Queen King and Cal King sizes.

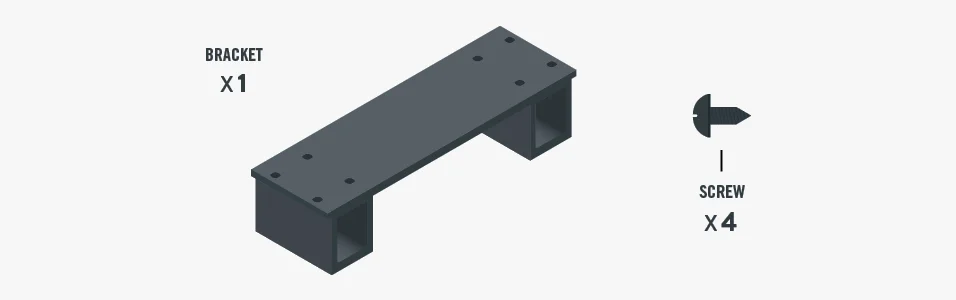

Adjusting bracket

Use the adjusting bracket to keep frames synced during adjustment.



Frame adjustment

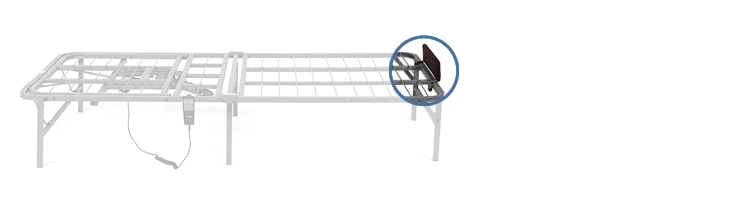

1 Use the mattress retainer to prevent your mattress from slipping when adjusted.



2 Do not adjust the foundation until assembly is complete. Use the remote control to adjust the foundation to your desired position. In the event of a power failure, the frame must be manually reset by disassembling the motors.
